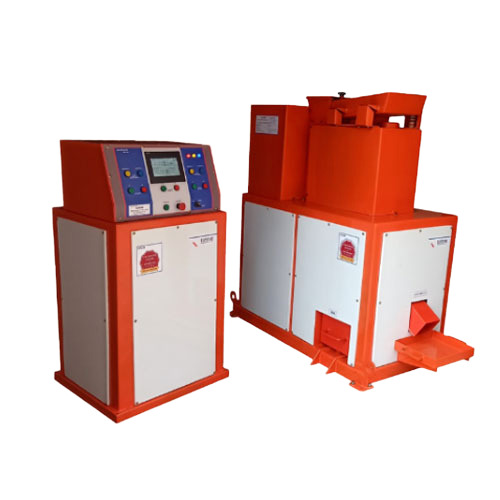

Product Description
- Purpose :To crush lumps of Rocks, Minerals, Iron ores, Iron Oxides, Ferrite, Boron Carbides, Bauxite, Concrete, Geological ores, Quartz, Glass, Silicate, Cement Clinkers, Limestone, Dolomite, Coal & Coke Manganese ore etc., having medium to substantially high hardness.
- Brief Description :The Jaw Crusher consists of a moving and a fixed jaw. The motion of moving jaw is a combination of oscillatory and linear motion, which crushes the lumps into chips suitable for pulverizing in a pulveriser like Vibratory Cup Mill. The fixed jaw can be adjusted to obtain a desired gap up to 3 mm.
- Innovative Design :Kameyo Jaw Crusher is very much different from those available in the market. This is our own unique design which is a result of our research-based efforts. Jamming of material is almost not possible in our Jaw Crusher.
- Sample Collection :Further, we have incorporated a sealed Chute channel which guides the crushed material to the delivery point which is provided out side of the machine body, that prevents dust accumulation in internal parts of machine, thereby increasing life of machine's moving parts by reducing abrasive wear and tear of the joints.
- Digital Display :The gap between jaws is displayed digitally.
- Reuse of Jaw Liner :Thickness of Jaw Liner is kept slightly higher, which can be ground after considerable wear and tear, having grinding allowance. The jaw liner can be refreshed even after 1 year of usage.
- Robust Gap Adjustment : The Jaw gap adjustment mechanism is also made robust. The adjusting screw is provided with a heavy thrust bearing and one ball bearing, which gives a trouble-free long life to the mechanism.
- Dynamically Sealed Chamber : The Main shaft is provided with four Heavy Spherical Roller Bearings, which are dynamically sealed and the bearing chamber is filled with lubricating oil.
- Positive Crushing Impact : Jaws are cast in single piece steel. Weight of moving jaw is approx. 32 Kg, which gives high inertia in combination of Double Fly wheels that imparts a fail-safe positive crushing impact without jamming of material.
- Long Life : Our crusher is robustly crafted to have a long performance life of 10-15 years.
| Feed Size | 50/75/100/150/200 mm |
| Output Size | 3 mm to 15 mm |
| Material of Crushing Liner | Mn Steel (Hardened Steel - D2 Grade) or Tungsten Carbide |
| Jaw Width | 60/85/110/160/210 mm (Explained on previous page) |
| Motor | 5 HP, 3.73 KW, 1440 rpm, 3 Phase |
Precision with Manual Gap AdjustmentThe manual gap adjustment mechanism offers enhanced control over the size of the output material, making this jaw crusher ideal for laboratories and quality control environments. Users can finely tune the crushing gap to suit various sample requirements, ensuring reproducibility in every batch. This adjustment system is easy to operate, providing quick changeovers and minimal downtime.
Stainless Steel DurabilityConstructed from high-grade stainless steel, the KJC Jaw Crusher resists corrosion and endures heavy-duty use, making it suitable for long-term deployment in industrial settings. The blue finish not only adds a vibrant touch but also contributes to the equipment's robust design, ensuring both aesthetics and functionality are upheld.
Automatic Operation for Greater EfficiencyDespite not being computerized, the KJC series is equipped with automatic features that enhance user experience and productivity. With its capability to process samples swiftly and reliably, operators can focus on analytical tasks without constant manual intervention, promoting efficiency and consistent performance.
FAQ's of Laboratory Jaw Crusher - Manual Gap Adjustment KJC 050-075-100-150-200:
Q: How do I manually adjust the gap setting on the KJC Laboratory Jaw Crusher?
A: To manually adjust the gap, use the designated adjustment lever located on the side of the crusher. This mechanism allows you to increase or decrease the distance between the crushing jaws, thereby controlling the size of the crushed output material.
Q: What are the main benefits of using a stainless steel jaw crusher for laboratory applications?
A: Stainless steel construction ensures high resistance to rust and chemical corrosion, providing a longer equipment lifespan and maintaining sample purity-critical for laboratory settings and consistent testing results.
Q: When should I consider using this jaw crusher in my laboratory or industrial process?
A: Utilize the KJC Jaw Crusher when precise, repeatable sample size reduction is essential, such as before chemical analysis, material testing, or quality assurance in various industries, including mining, metallurgy, and geology.
Q: Where is this Laboratory Jaw Crusher manufactured and supplied from?
A: This model is designed and manufactured in India, and is available to exporters, manufacturers, service providers, and suppliers throughout both domestic and international markets.
Q: What is the process for operating this automatic jaw crusher model?
A: Simply power the machine using a compatible 220-440 volt supply, place your sample in the feed hopper, adjust the crushing gap manually, and activate the jaw crusher. The automatic mechanisms handle the rest, processing your material efficiently.
Q: How does the ECO-friendly feature benefit my laboratory operations?
A: The ECO-friendly design minimizes energy consumption and reduces environmental impact, helping laboratories meet sustainability goals without compromising on crushing efficiency and throughput.
