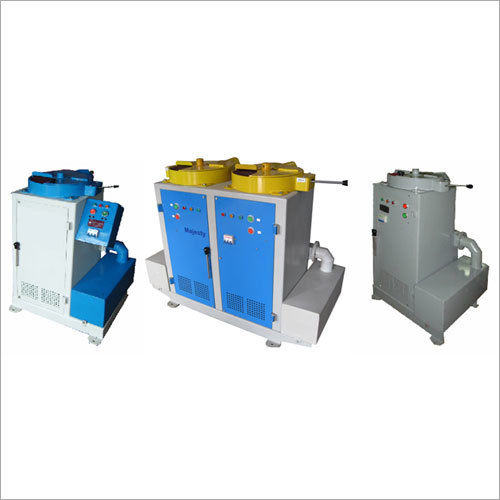

Spectrographic Sample Polishing Machine Duel Disc

Spectrographic Sample Polishing Machine Duel Disc

मूल्य/उद्धरण प्राप्त करें

उत्पाद विवरण:

  • प्रॉडक्ट टाइप स्पेक्ट्रोग्राफिक सैंपल पॉलिशिंग मशीन ड्यूल डिस्क
  • मटेरियल हल्का स्टील
  • स्वचालित ग्रेड ऑटोमेटिक
  • वोल्टेज 220-440 वोल्ट (v)
  • फ़ीचर हाई परफॉरमेंस, ईसीओ फ्रेंडली
  • रंग मल्टी कलर
  • वारंटी 1 वर्ष
  • Click to view more
Request To Call Back जांच भेजें
X

स्पेक्ट्रोग्राफिक सैंपल पॉलिशिंग मशीन ड्यूल डिस्क मूल्य और मात्रा

  • यूनिट/यूनिट
  • यूनिट/यूनिट
  • 1

स्पेक्ट्रोग्राफिक सैंपल पॉलिशिंग मशीन ड्यूल डिस्क उत्पाद की विशेषताएं

  • 1 वर्ष
  • स्पेक्ट्रोग्राफिक सैंपल पॉलिशिंग मशीन ड्यूल डिस्क
  • मल्टी कलर
  • हल्का स्टील
  • हाई परफॉरमेंस, ईसीओ फ्रेंडली
  • ऑटोमेटिक
  • 220-440 वोल्ट (v)

स्पेक्ट्रोग्राफिक सैंपल पॉलिशिंग मशीन ड्यूल डिस्क व्यापार सूचना

  • 1 प्रति सप्ताह
  • 7 दिन

उत्पाद विवरण

Diameter of disc

350 mm (Standard size)

Bore Diameter of disc

40 mm

Speed of both discs

2880 RPM (Standard)

Polish Paper Disk Size

Dia 350 x Bore 40 mm (standard size)

Disk Drive Motors

2HP, 3Phase, 440V, 50Hz (Each disc having individual motors)

Suction Blower Motors

1HP, 3Phase, 440V, 50Hz (Each disc having individual suction blower)

Rating of Disk Drive Motors

2HP/415V/50Hz/3Ф/1440 rpm, AC Supply, T.E.F.C. Type 02 Motors - Separate motor for each Disc

Rating of Suction Blower Motors

1 HP/415V/50Hz/3Ф/2880 грm, AC Supply, T.E.F.C. Type 02 Motors - Separate motor for both Suction Systems.

Starters

Push Button type with overload preventer, of standard make.

Disc Plates

Made of Steel with Air gripping arrangement of polishing paper and locking system, to keep the polishing paper in position. (Dia-350 mm; Bore: 40mm)

Disc Cover

Fully covered with ample space open for polishing the sample. The Gap between Polishing Disc and sample support is kept 2 mm. This arrangement makes the air suction more efficient and also checks the sample from entering the suction system. However the suction pipe is provided with a grid to hold any thin sample from hitting the rotating impeller.

Support for Polishing

The support for polishing is provided in the disc cover against which the sample is held while polishing.




Effortless Dual-Disc Polishing

Experience efficient sample preparation with dual discs that allow simultaneous polishing, drastically reducing time and improving workflow. The Spectrographic Sample Polishing Machine ensures high throughput and consistent results, making it ideal for demanding laboratories and industrial inspection environments.


Built for Performance and Sustainability

Engineered from mild steel, this machine ensures robustness and long-lasting operation. Its eco-friendly design minimizes environmental impact while maintaining superior performance. Automatic operation reduces manual intervention, supporting consistent and reproducible sample preparation.


Trusted Across Industries

As a reputable exporter, manufacturer, service provider, and supplier in India, this machine is trusted by metallurgical labs, research institutions, and quality control departments. Delivering reliability and excellent service support, it meets the diverse needs of the scientific community with a focus on quality assurance.

FAQ's of Spectrographic Sample Polishing Machine Duel Disc:


Q: How does the dual disc feature enhance the efficiency of sample polishing?

A: The dual disc configuration allows users to polish two samples simultaneously, effectively doubling productivity and ensuring more uniform results in less time compared to single disc machines.

Q: What is the process for operating this automatic polishing machine?

A: Simply place your sample on the designated disc, select the desired settings, and start the machine. The automated system manages the polishing cycle, minimizing manual intervention and delivering consistent finishes.

Q: When is this machine recommended for use in laboratories or industries?

A: This machine is ideal for laboratories or industrial settings requiring high-performance, automated sample preparation, particularly where throughput and consistency are critical factors.

Q: Where is the Spectrographic Sample Polishing Machine manufactured and supplied from?

A: This machine is manufactured and supplied from India by a reputable exporter, manufacturer, service provider, and supplier with experience in serving both domestic and international clients.

Q: What are the main benefits of using this automatic polishing machine?

A: Benefits include improved productivity, consistent sample quality, eco-friendly operation, and a sturdy build with mild steel, all supported by a one-year warranty.

Q: How does the machine ensure environmentally responsible operation?

A: It is designed with eco-friendly features that reduce resource consumption and environmental impact during operation, aligning with modern sustainability practices.

Q: What type of maintenance and support is provided during the warranty period?

A: The product comes with a one-year warranty covering manufacturing defects and service support, ensuring reliable operation and prompt assistance for maintenance needs.
